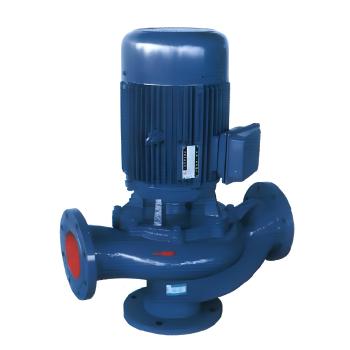

GW sewage pump | submersible centrifugal pump | Transport media such as sewage, sludge and wastewater
- FOB Price
US $800.01 - 5 piece
US $600.06 - 10 piece
US $400.011 - 15 piece
- group name
- Sewage Pump
- Min Order
- 1 piece
- brand name
- ZHONGDA PUMPS
- model
- GW Sewage Pump
- Nearest port for product export
- Guangzhou, Shanghai, Shenzhen, Qingdao
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, L/C
- update time
- Fri, 05 Dec 2025 15:09:57 GMT
Paramtents
Colour customizable
Capacity 3.75-840m3/h
Max Head 19-680m
Packging & Delivery
-
Min Order1 piece
Briefing
High-Efficiency Pipeline Pump Water Pump |Single stage single suction centrifugal pump | Ideal for Industrial and Urban Water Supply, agricultural irrigation
Detailed
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
The GW type sewage pump is a submersible centrifugal pump designed for transporting media such as sewage, sludge, and wastewater containing solid particles and fibers. This pump features high efficiency, wear resistance, and corrosion resistance, and is widely used in municipal engineering, sewage treatment, construction sites, mine drainage, agricultural irrigation, and other fields. Its operating temperature range is from -20℃ to 60℃.
Model Description:
Take GW50-20-15 as an example:
- GW: Sewage pump type
- 50: Pump outlet diameter (mm)
- 20: Flow rate (m³/h)
- 15: Head (m)
Product Features:
- Efficient sewage discharge: With a unique impeller design, it can effectively convey sewage containing solid particles and fibers.
- Wear-resistant and corrosion-resistant: The pump body and impeller are made of high-chromium alloy materials, which have excellent wear resistance and corrosion resistance.
- Compact structure: The design is reasonable, with a small footprint and easy installation. Smooth operation: The impeller has undergone precise balance correction, resulting in low vibration and low noise.
- Easy maintenance: The pump shaft is coaxial with the motor, making disassembly and assembly convenient and reducing maintenance costs.
- Reliable sealing: It adopts mechanical seals or packing seals to ensure no leakage and reliable operation.
Scope of Application:
- Municipal engineering: for urban drainage, sewage treatment and stormwater discharge.
- Construction sites: for foundation pit drainage and construction wastewater discharge.
- Mine drainage: for mine shaft drainage and sludge transportation.
- Agricultural irrigation: for farmland drainage and irrigation systems.
- Industrial wastewater: for factory wastewater and sludge discharge.
Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Efficiency | Motor Power | Outlet Diameter | Weight | |
m3/h | m | rpm | % | kW | mm | kg | |||
1 | 25GW8-22-1.1 | 8 | 22 | 2900 | 38 | 1.1 | 25 | 42 | |
2 | 40GW15-15-1.5 | 15 | 15 | 2950 | 45 | 1.5 | 40 | 52 | |
3 | 50GW15-25-2.2 | 15 | 25 | 2950 | 56 | 2.2 | 50 | 60 | |
4 | 65GW30-40-7.5 | 30 | 40 | 2950 | 56 | 7.5 | 65 | 110 | |
5 | 80GW65-25-7.5 | 65 | 25 | 2950 | 56 | 7.5 | 80 | 135 | |
6 | 100GW100-25-11 | 100 | 25 | 1450 | 65 | 11 | 100 | 270 | |
7 | 125GW130-20-15 | 130 | 20 | 1450 | 63 | 15 | 125 | 300 | |
8 | 150GW180-30-30 | 180 | 30 | 1450 | 73 | 30 | 150 | 500 | |
9 | 200GW400-30-45 | 400 | 30 | 1480 | 70 | 45 | 200 | 1000 | |
10 | 250GW600-25-75 | 600 | 25 | 1480 | 73 | 75 | 250 | 1300 | |
11 | 300GW950-20-90 | 950 | 20 | 980 | 80 | 90 | 300 | 1700 | |
12 | 300GW1000-25-110 | 1000 | 25 | 980 | 82 | 110 | 300 | 2520 | |
13 | 350GW-1100-10-55 | 1100 | 10 | 980 | 84.5 | 55 | 350 | 2880 | |
14 | 350GW1500-15-90 | 1500 | 15 | 980 | 82.5 | 90 | 350 | 2250 | |
15 | 350GW1000-36-160 | 1000 | 36 | 740 | 78.5 | 160 | 350 | 2500 | |
16 | 400GW1500-10-75 | 1500 | 10 | 980 | 82.1 | 75 | 400 | 2580 | |
17 | 400GW2000-15-132 | 2000 | 15 | 740 | 85.5 | 132 | 400 | 2800 | |
... | ... | ... | ... | ... | ... | ... | ... | ... | |
*For more models, please download our catalogue or contact us.
Data Download:
GW-type Sewage pump
