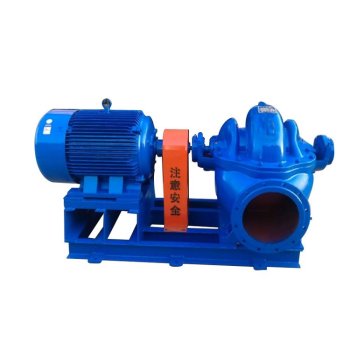

XS-Type Horizontal Split Case Centrifugal Pump | High Flow Double suction pump | Cost Effective
- FOB Price
US $2000.01 - 5 piece
US $1600.06 - 10 piece
US $1200.011 - 15 piece
- group name
- Split Case Pump
- Min Order
- 1 piece
- brand name
- ZHONGDA PUMPS
- model
- XS
- Nearest port for product export
- Guangzhou, Shanghai, Shenzhen, Qingdao
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, L/C
- update time
- Fri, 05 Dec 2025 15:09:58 GMT
Paramtents
Material Cast iron, cast steel, stainless steel
Capacity 50-18000m3/h
Max Head 10-200m
Colour customizable
Packging & Delivery
-
Min Order1 piece
Briefing
Horizontal Split Case Centrifugal Water Pump | Stable, Low-Noise Operation | Ideal for Industrial and Urban Water Supply, Fire Pressurization, and Irrigation
Detailed
- Product Introduction
- Product Features
- Scope of Application
- Structural Drawings
- Performance Parameters
- Data Download
Product Introduction
The XS split-case pump is a single-stage, double-suction, horizontal split-case centrifugal pump, which is an improved version of the S split-case pump. This pump has been optimized in structure, performance and materials, featuring higher efficiency, more stable operation performance and a wider range of applications. The XS split-case pump is suitable for conveying clear water or liquids with physical and chemical properties similar to water, and is widely used in urban water supply, farmland irrigation, industrial circulating water systems, air conditioning systems and large-scale water conservancy projects, etc.
Model Description:
For example, XS500-600A,
- XS: indicates the type of split-case pump.
- 500: represents the pump's inlet diameter (in millimeters).
- 600: represents the nominal diameter of the impeller (in millimeters).
- A: indicates that the impeller has undergone the first cut (B indicates the second cut, and so on).
Product Features:
- Double suction structure: The impeller adopts a double suction design, featuring large flow, balanced axial force, and more stable operation.
- Horizontal split design: The pump casing is split along the horizontal centerline, facilitating disassembly and maintenance without the need to remove the inlet and outlet pipes.
- High efficiency and energy saving: Advanced hydraulic model design ensures high efficiency, low energy consumption, and economical operation.
- Stable operation: The rotor components undergo precise dynamic balance correction, resulting in low vibration, low noise, and long service life.
- Superior materials: The flow-through components are made of wear-resistant and corrosion-resistant materials, suitable for various media.
- Wide application range: It can transport clear water, seawater, and other liquids with physical and chemical properties similar to water.
Scope of Application:
-Urban water supply and drainage systems
- Irrigation and drainage in farmlands
- Industrial circulating water systems
- Air conditioning cooling water systems
- Large-scale water conservancy projects
- Industrial fields such as power plants, chemical plants, and steel mills
Structural Drawings:
Performance Parameters:
NO. | Model | Flow | Head | Speed | Shaft
power | Motor Power | EFF | NPSH | |
XS | m3/h | L/s | m | rpm | kW | kW | (%) | m | |
1 | 80-370 | 67
111.6
133.2 | 42.5
38
34 | 42.5
38
34 | 1450 | 11.7
15.3
17.1 | 22 | 66
75
72 | 1.8
2
4 |
2 | 100-250 | 205.2 295.2 378 | 57 82 105 | 85 74 62 | 2900 | 60.8 71.6 80.7 | 90 | 78 83 79 | 5.8 7.3 11 |
3 | 125-230 | 324 540 637.2 | 90 150 177 | 75 60 50 | 2900 | 88.2 103.1 104.5 | 110 | 75 85.5 83 | 6 7.5 9.2 |
4 | 150-360 | 252 450 576 | 70 125 160 | 44 38 30 | 1450 | 39.7 54.7 58.8 | 75 | 76 85 80 | 2.1 2.5 4.4 |
5 | 200-420 | 432 712.8 961.2 | 120 198 267 | 60 52 40 | 1450 | 90.4 117.3 130.8 | 132 | 78 86 80 | 3.2 3.8 7 |
6 | 250-370 | 720 1062 1368 | 200 295 380 | 46 39 30.5 | 1450 | 112.7 128.1 142 | 160 | 80 88 80 | 4.1 4.3 6 |
7 | 300-435 | 1080 1710 2070 | 300 475 575 | 64 52.5 45 | 1450 | 241.3 274.7 294.9 | 315 | 78 89 86 | 4.5 5.2 6.5 |
8 | 350-510 | 1800 2664 3420 | 500 740 950 | 83 70 54 | 1450 | 496.1 580.3 620.9 | 630 | 82 87.5 81 | 6 6.8 10.6 |
9 | 400-600 | 1919 3168 3888 | 533 880 1080 | 129.7 113 98 | 1450 | 891.7 1133.6 1220.7 | 1250 | 76 86 85 | 4.4 7.5 11.6 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
*For more models, please download our catalogue or contact us.
Data Download:
XS-type split-case DOUBLE SUCTION pump
